XCMG Recommends Several Heavy-Duty Used Mining Excavators
I. Introduction
In open-pit mining, granite quarrying, and various hard rock mining sites, excavators are the core production equipment. Mining conditions are characterized by heavy loads, continuous operation, high dust levels, and large temperature differences. Equipment malfunctions and downtime can result in daily production losses of tens of thousands of yuan. Meanwhile, the high cost and long payback period of new machines deter many mine owners; and the lack of transparency in the condition of vehicles in the general used market, coupled with unofficial transactions, raises concerns.
To address this dilemma, XCMG's used equipment platform, relying on original factory data and a remanufacturing system, has carefully selected several XCMG-certified used mining excavators—XE370D, XE470D, and XE490DK—that have been tested in real-world mining operations. This article will take a selection perspective, combining measured data and working condition matching logic, to help you calculate the cost of "worth buying, reliable operation, and easy resale" of mining equipment.
II. Three Major Pain Points in Selecting Equipment for Mine Construction
1. Extremely Harsh Working Conditions:
Mine operations often involve excavating hard rocks such as granite and iron ore, or using hydraulic breakers in conjunction with other equipment. The chassis and working devices are subjected to long-term impact loads. High-altitude mining areas suffer from oxygen deficiency, affecting engine output. Northern winters with temperatures as low as -30°C test cold-start performance. Ordinary earthmoving machines are prone to excessive wear on the wheels and booms under these conditions.
2. Investment and Recovery Pressure:
The unit price of a new 47-49 ton mining machine is typically over one million yuan. For small and medium-sized mining enterprises or construction teams that have just taken on a new project, this ties up a large amount of working capital. The investment recovery period is often 3-5 years, resulting in insufficient risk resistance.
3. Information Asymmetry in the Second-hand Market:
Ordinary second-hand machines often have issues such as falsified hourly rates, undetected defects in core components (engine/main pump/valve), and lack of proper warranties. Cases of "buying low and repairing high" are common. The core demands of mine owners are: peace of mind when buying, ease of use, and resale value retention.
III. XCMG Certified Used Equipment
XCMG's officially certified used equipment is not simply about buying and selling old machines, but rather implementing a rigorous closed-loop process of "inspection – refurbishment – remanufacturing – certification":
360° Comprehensive Inspection:
Over a hundred tests are conducted on engine compression ratio, hydraulic pump flow/pressure attenuation, structural component weld cracks, and electrical systems, resulting in a traceable "XCMG Used Equipment Certification Report."
Original Factory Standard Refurbishment (According to Customer Requirements):
Worn-out parts are replaced with genuine XCMG parts or remanufactured and repaired; key fasteners are retightened to new machine torque standards, achieving a performance recovery rate of over 95%.
Full-Cycle Service Support:
Relying on XCMG's nationwide network of over a thousand service outlets and overseas agents, we provide direct supply of original parts, on-site emergency repairs, and technical guidance, completely eliminating the worry of "not being able to find someone to repair after purchase."
IV. Key Model Recommendations – XCMG Heavy-Duty Used Mining Excavators

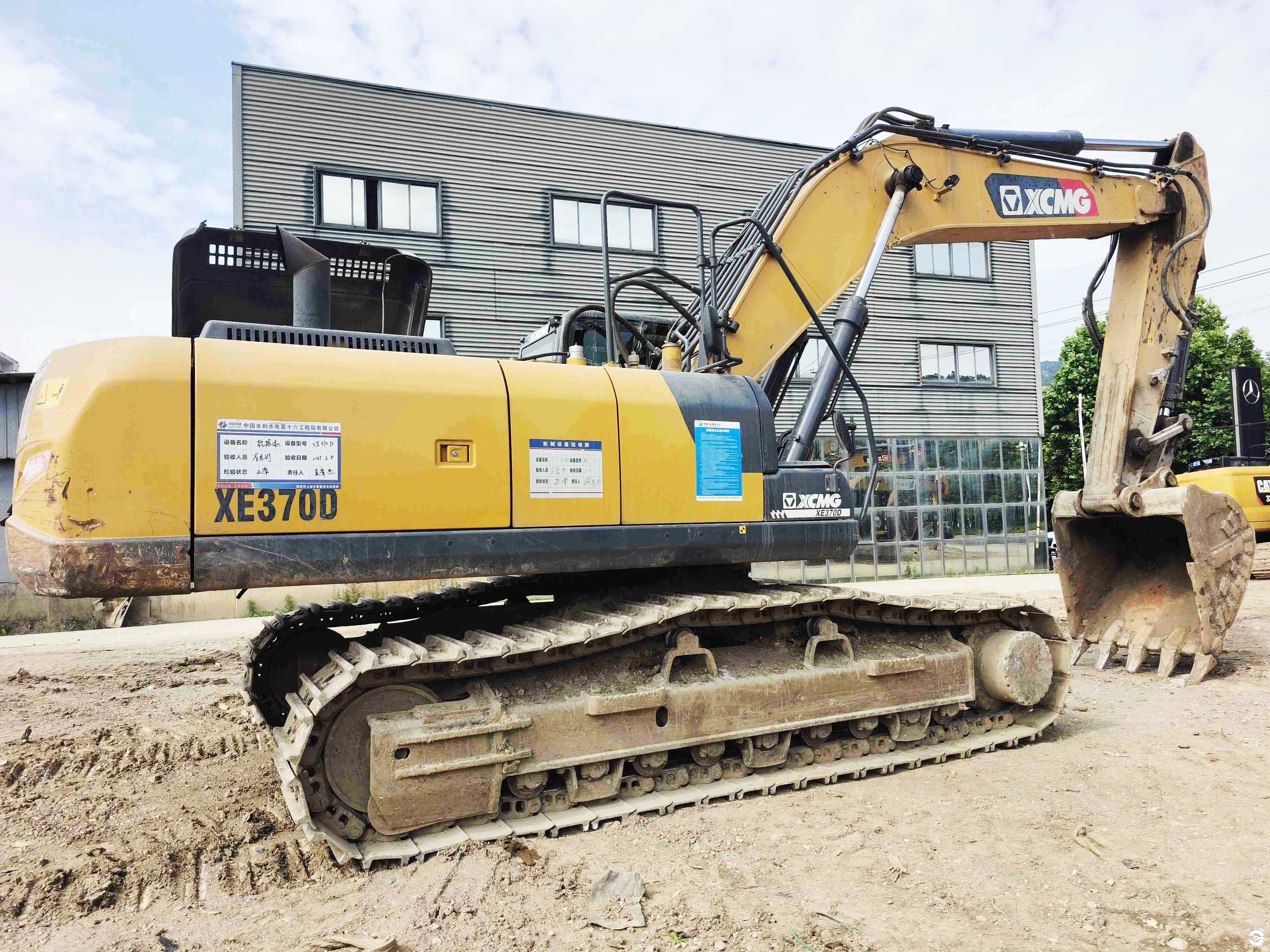

1. XE370D– A High-Performance Mainstay for Small and Medium-Sized Mines
|
Item
|
Unit
|
Parameter
|
|
|
Operating weight
|
kg
|
36800
|
|
|
Bucket capacity
|
m³
|
1.4~1.8
|
|
|
Engine
|
Model
|
Engine
|
GH-6HK1XKSC-03
|
|
Output power
|
kW/ r/min
|
212/2000
|
|
|
torque/speed
|
N.m
|
1080/1500
|
|
|
Displacement
|
L
|
7.79
|
|
The XE370D is equipped with a low-speed, high-torque Isuzu engine, precisely matched with a new generation hydraulic controller, providing balanced performance in loading and stripping operations in small and medium-sized limestone and building stone mines. Its extended and heavy-duty chassis, combined with a reinforced boom and stick, significantly improves torsional resistance compared to ordinary earthmoving machines, making it suitable for 10-12 hours of continuous operation per day. Compared to new machines, the purchase cost is reduced by 30%-40%, making it the preferred entry-level mining excavator for many stone mines with an annual output of 300,000-500,000 tons.

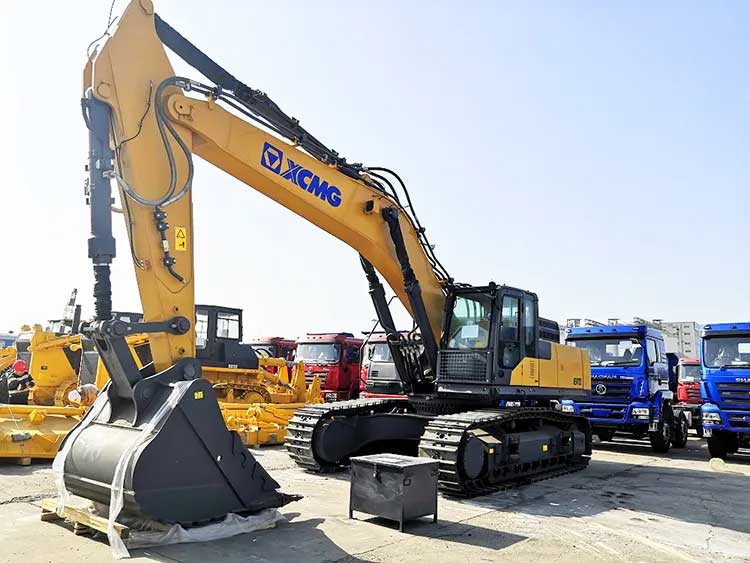

2. XE470D – A Powerful Tool for Large-Scale Open-Pit Mine Overburden Stripping and Hard Rock Excavation
|
Model
|
Unit
|
XE470D
|
|
|
Operating weight
|
Kg
|
46900
|
|
|
Bucket capacity
|
m³
|
2.2-2.5
|
|
|
Engine
|
Model engine
|
/
|
QSM11-335
|
|
Rated power/speed
|
kw/rpm
|
274/1800
|
|
|
Maximum torque/speed
|
N.m/rpm
|
1790/1400
|
|
|
Displacement
|
L
|
11
|
|
The XE470D is specifically designed for medium to large-scale open-pit mines. Its large-displacement Cummins engine, combined with a high-flow main pump, provides ample digging penetration power for hard rock topsoil stripping. The chassis features a widened and weighted X-beam chassis with double-ribbed track plates, offering excellent anti-overturning and climbing stability, making it suitable for large-scale earthwork stripping and rubble loading in large iron ore and limestone mines. Compared to similarly sized imported used machines, the XCMG-certified XE470D has a lower purchase threshold and offers greater advantages in parts supply and maintenance response due to its local availability.

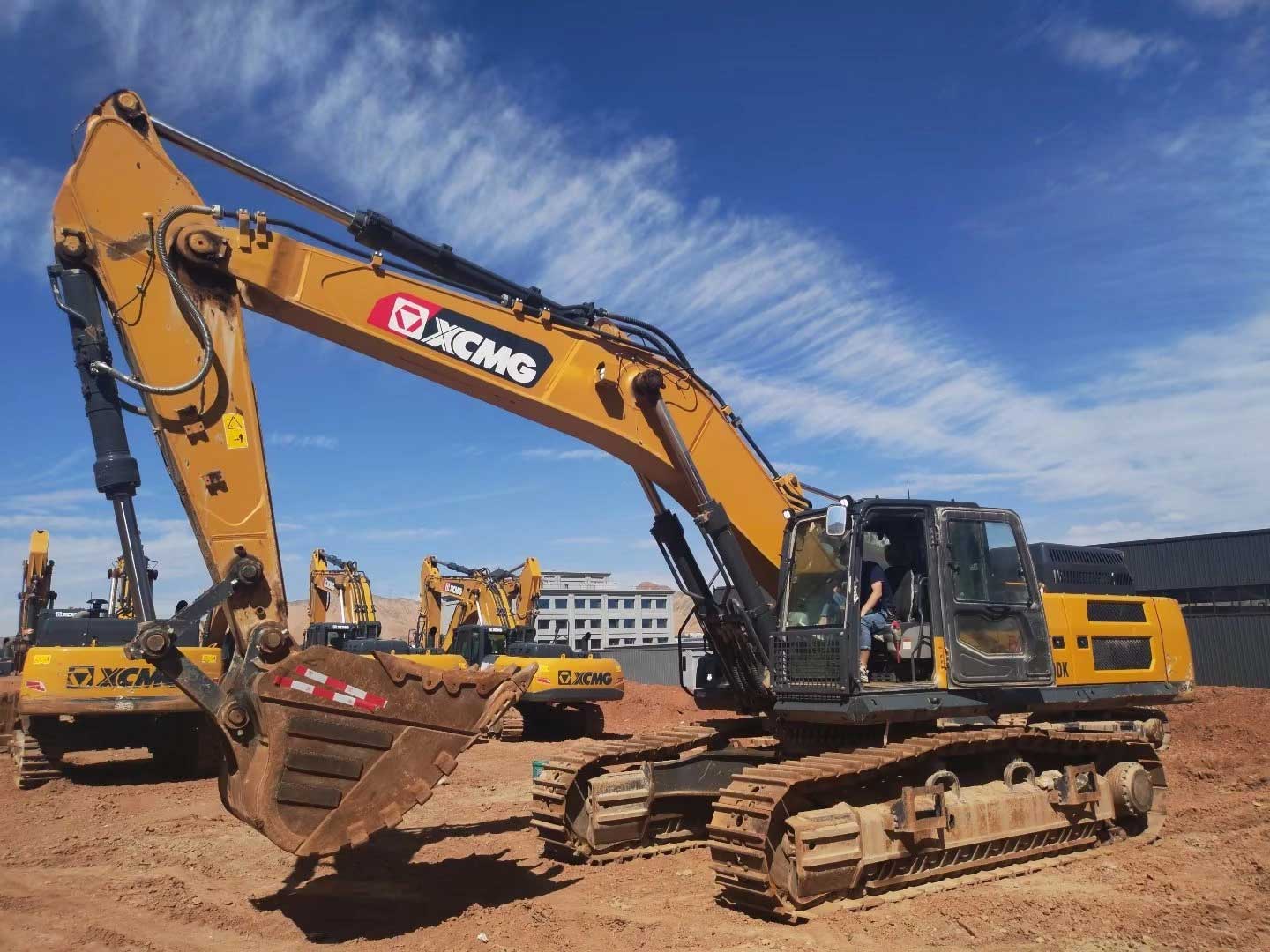

3. XE490DK – The "King of Heavy Duty" for High Altitude, Low Temperature, and Crushing Conditions
|
Item
|
Unit
|
Parameter
|
|
|
Operating weight
|
Kg
|
48100
|
|
|
Bucket capacity
|
m³
|
2.3-3.1
|
|
|
Engine
|
Model engine
|
/
|
QSM11-375
|
|
Rated power/speed
|
kw/rpm
|
280/2000
|
|
|
Maximum torque/speed
|
N.m/rpm
|
1898/1300
|
|
|
Displacement
|
L
|
11
|
|
The XE490DK is an upgraded version of the XE470D – it comes standard with altitude adaptive technology, which automatically adjusts the main pump power based on GPS positioning to prevent the engine from emitting black smoke or stalling in high-altitude, oxygen-deficient conditions; it adopts "self-optimizing matching technology for crushing conditions," reducing fuel consumption by 15%–20% compared to comparable models when matched with a large breaker hammer; and its reinforced boom and stick feature a partially variable cross-section design, increasing bending strength by over 10%, making it the best choice for high-altitude metal mines, frigid northern mining areas, and crushing-dominant working conditions.
V. Mining Equipment Selection Recommendations
Select the appropriate model based on working conditions: Daily stripping capacity > 5000 t or primarily hard rock stripping → XE470D/XE490DK preferred; Small to medium-sized stone quarries, loading + light stripping → XE370D sufficient; High altitude (>2000 m) or hydraulic breaker usage rate > 60% → XE490DK preferred.
Look for official certification: Avoid "low-price traps," request to see the "Used Equipment Certification Report" and core component testing records to confirm whether a warranty is included.
Calculate Total Lifetime Cost (TCO): This involves more than just comparing the purchase price; it's essential to consider fuel consumption (annual fuel consumption differences for large-tonnage mining excavators can reach tens of thousands of yuan), maintenance costs, downtime losses, and residual value.
Focus on Resale Channels: XCMG brand used excavators have strong liquidity and stable residual value. There are established channels for resale or trade-in, offering greater asset flexibility.
VI. Conclusion:
In mining operations, choosing the right equipment can double your profits. XCMG's XE370D, XE470D, and XE490DK certified used mining excavators have undergone rigorous testing in mines across the country. Balancing heavy-duty reliability, low operating costs, and original factory service guarantees, they are a practical choice for mine owners seeking cost reduction and efficiency improvement.
